AJS ( Stevens ) Matchless Pre War Spares / Ersatzteile All Parts + Post/Packing + (19%) VAT Payment with C.Card (+6%) or PayPal (+ our Charge) or Bank Transfer   Mimimum Order of € 30.00 Mindestbestellwert 30,00 € click pictures to enlarge

Matchless Silver Arrow    AJS M4

click

Valves / Ventile

Engine / Motor

Sundries / Verschiedenes

Electric / Elektrik

Valves / Ventile Back   Menue

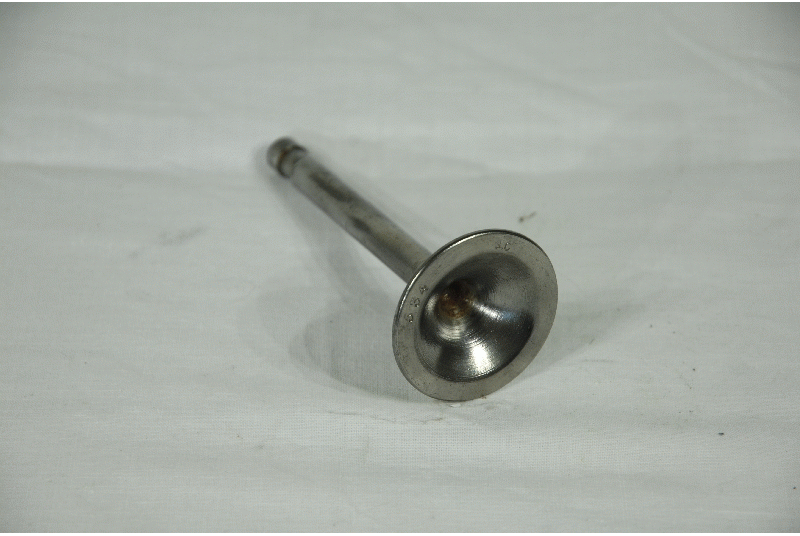

AJS Valves Inlet or Exhaust British Made James Part No.381 NOS fits 1928-29 Models 2 1/4 K12, M12, ( Slotted Stem ) 248cc SV	AJS Valves Inlet or Exhaust British Made James Part No.303 NOS fits 1927-29 AJS Models 2 3/4 H6, K6, M6, 350cc OHV	AJS Valves Inlet or Exhaust British Made James Part No.3003 NOS fits 1930-32 Models 2 3/4 R6 S6 2 Port, T6 350cc OHV, T8 500cc	AJS Valve Spring sets Genuine Terrys NOS fits 1930-32 Models S6 350cc OHV
each 15,00 €	Sold each 15,00 €	Sold each 20,00 €	Set 40,00€

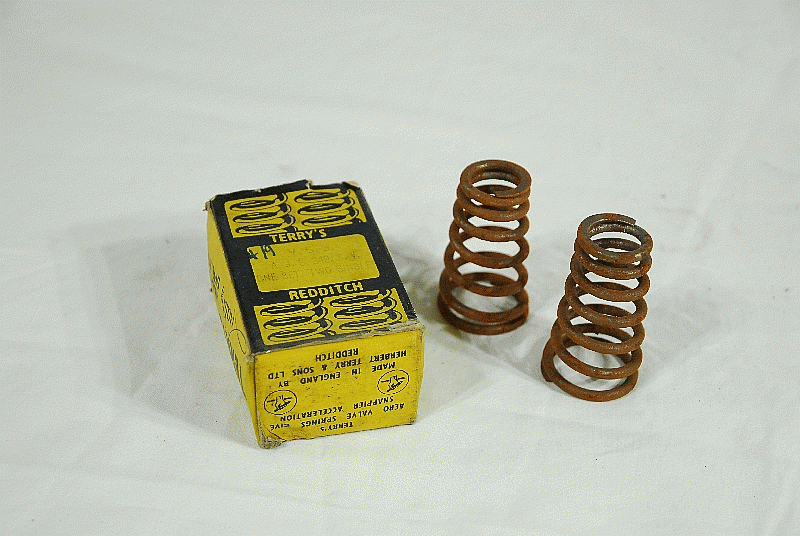

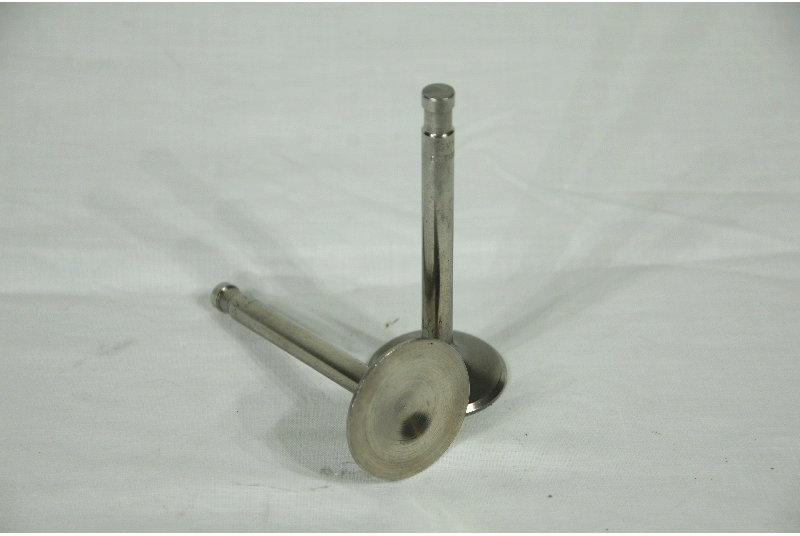

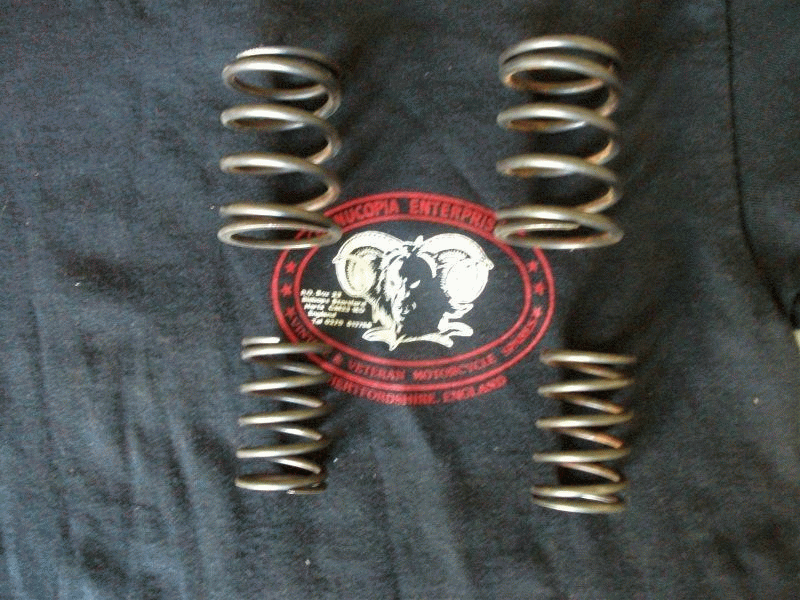

Matchless V-Twin Terrys Valve Spring Set Genuine NOS four Single Springs Length 46mm, Dia 32mm, Wire Dia 3.7mm fits 1930-40 Model 8/10 V-Twin X.R. 990cc SV Terry Part No. VS 88	Matchless / AJS James Valves NOS British Made from the 1950s fits 1929-48 350cc OHV D3, D6, G3, G3L Part No. Exhaust STD 677 Part No. Inlet STD 676	Matchless / AJS James Valve Guides Inlet & Exhaust NOS British Made from the 1950s fits 1929-48 350cc OHV G3, D6, G3, G3L Part No. 39-12-E148	Matchless / AJS Terry Valve Spring Set NOS Genuine Terry four Springs fits 1929-48 Models R, D, F, G, G2, D, D3, D6, G3, D80, G80, 90 Part No. VS 83
Set 45,00 €	each 15,00 €	each 8,00 €	Set 35,00 €

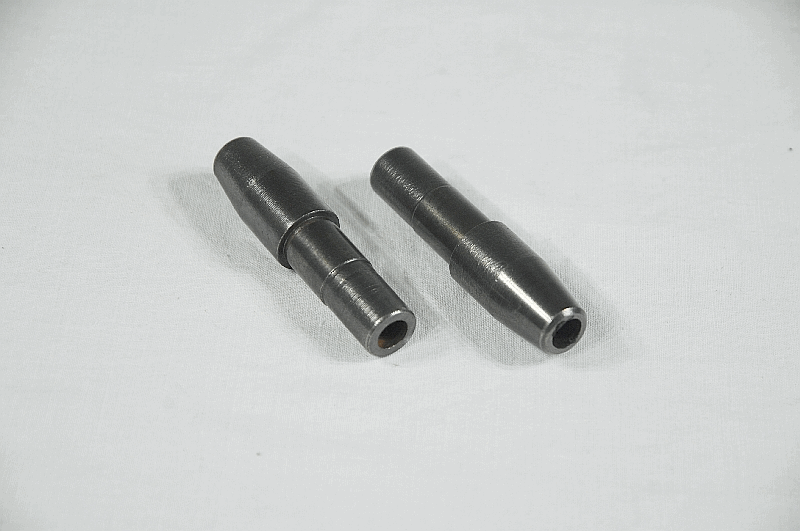

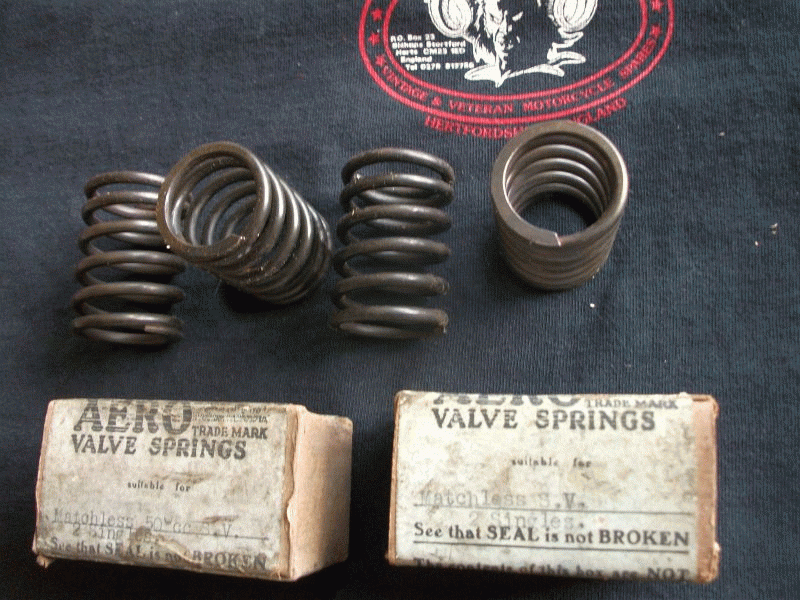

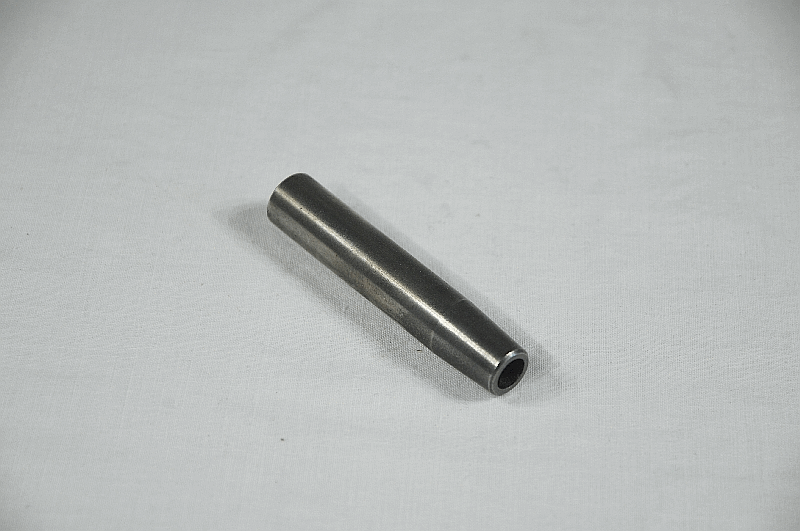

Matchless Terrys Valve Spring Set Genuine Two Pairs fits 1934-35 498cc OHV Model D80 also 1948 350cc OHV G3 Clubman Terrys Part No. VS 85	Matchless / AJS Terrys Valve Spring Set Genuine Two Singles fits 1930-36 349cc SV Model 5 also fits 1937-39 246cc OHV Models 12, 12M, 22 Terrys Part No. VS 3	AJS Valve Guide Replica from the 1950s, British Made Length 1.31/32 = 50mm Bore 11/32 = 8,7mm Push in Head Fit 5/8 = 15mm fits 1930-34 250cc OHV, AJS R12, S12, 33-12, 34-12 1931-35 Big Port, SB6, TB6, 33-6, 34-6, 35-6 350cc OHV	AJS Valve Guide, Inlet & Exhaust NOS British James Length 2. 3/4 = 69,8mm, Bore 5/16 = 7,9mm, Push fit in Head 9/16 = 14,3mm fits 1922-36 / SV 2 3/4 349cc; 1930 AJS 6 HP 700cc SV V-Twins; 1921-29 & R2 V.Twins AJS Part No. ZB2100
Sold Set 40,00 €	Set 30,00 €	each 14,00 €	each 12,00 €

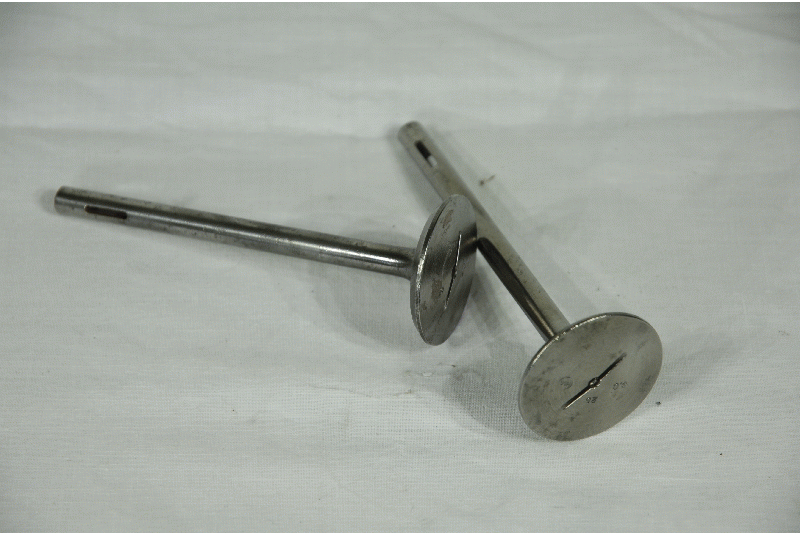

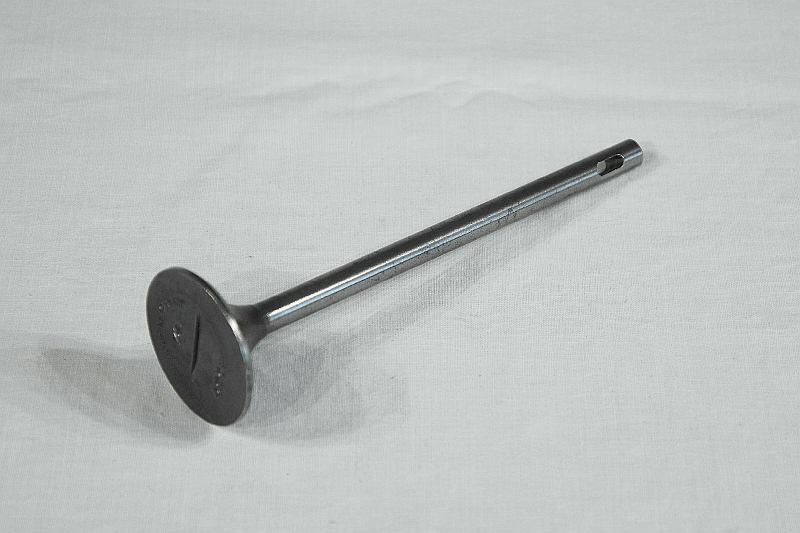

Matchles / AJS Valve NOS British James Exhaust Slotted Type Head Dia 1. 9/16 = 39.68 mm Length ( From under V. Seat ) 5. 1/2 = 139,7mm Shaft .310 = 7,87 fits 1937-40 498cc SV G5 also AJS Model 9 Gen Part No DSE 1506	Matchless Valve Guide, Inlet & Exhaust NOS British James Length 3 Inch = 76,2mm, Bore 5/16 = 7,9mm, Push fit in Head 9/16 = 14,3 mm fits 1930-37 4 1/4 SV & 8/10 V-Twin 1931-32 400cc Silver Arrow, 1931-33 386cc SV	Matchless Valve Guide, Inlet & Exhaust NOS British James Length 2 inch = 50,8mm, Bore 5/16 = 7,9mm, Push fit in Head 9/16 = 14,3mm fits 1931-33 Matchless Silver Hawk 4 Clyinder OHC 593cc	Matchless Valve Guide, Inlet & Exhaust NOS British James Length 2 1/4 Inch = 57,1 mm, Bore 5/16 = 7,9mm, Push fit in Head 9/16 = 14,3mm fits 1924-36 350cc & 500cc SV
each 20,00 €	Sold each 8,00 €	each 8,00 €	each 8,00 €

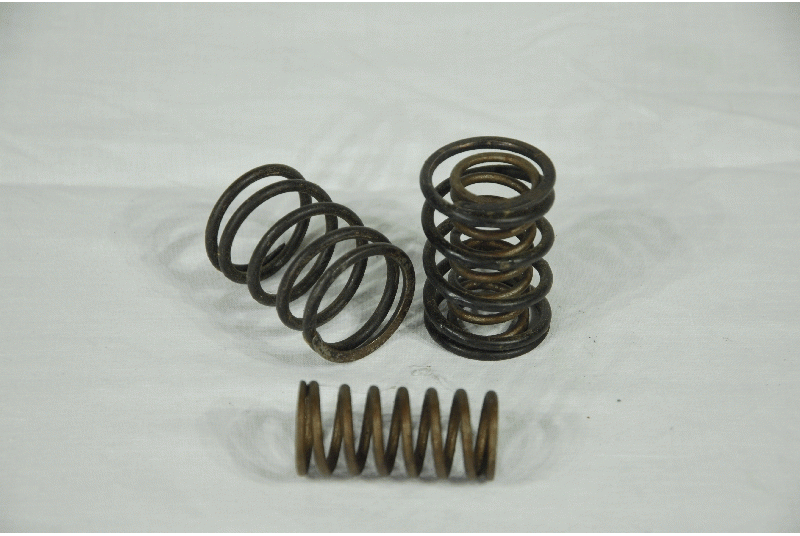

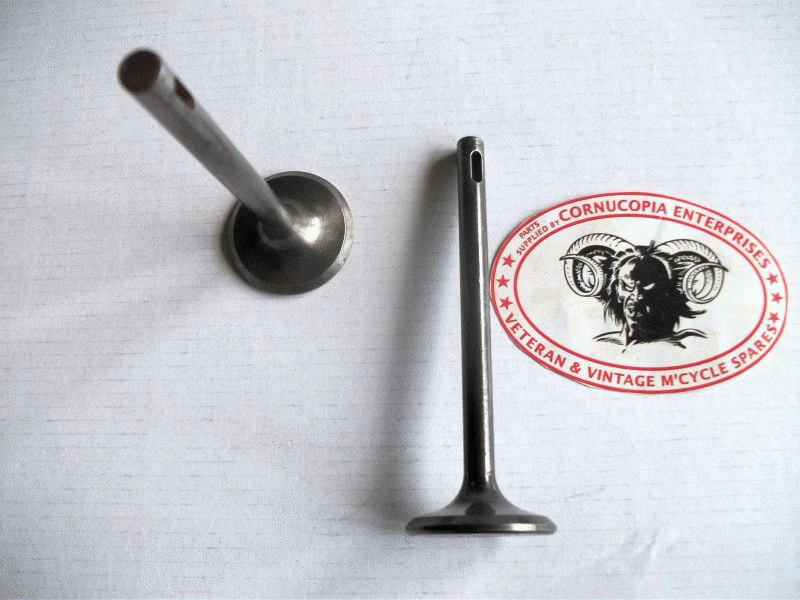

Matchless Valve Spring Sets Genuine Terrys NOS Length 45,2 mm O/Side Dia 32,2 mm, 6 1/2 Turns, Wire Dia 3,64 fits 1937-40 SV 498cc 3 1/2 Model G5, also fits 1937-40 990cc SV 8/10 V-Twin X Matchless Part No. XE 119	Matchless Valves British Made James 354 slotted Stem will fit Inlet & Exhaust Head Dia 1. 5/16, Stem .279, Length 3. 43/64 fits 1926-30 246cc Side Valve Models	AJS Valve Spring Set Genuine Terrys NOS outer Length 57,45mm, Dia 39,30, Wire 4,14mm 5.1/2 Turns inner Length 45,88mm, Dia 29,34, Wire 3,13 mm Turns 6 fits 1930-32 Models R6, 8, 56, 8 350cc & 500cc OHV Models AJS Part No.16929
Pair 45,00 € Set of Four 85,00 €	each 18,00 €	50,00 €
Engine / Motor Top   Menue

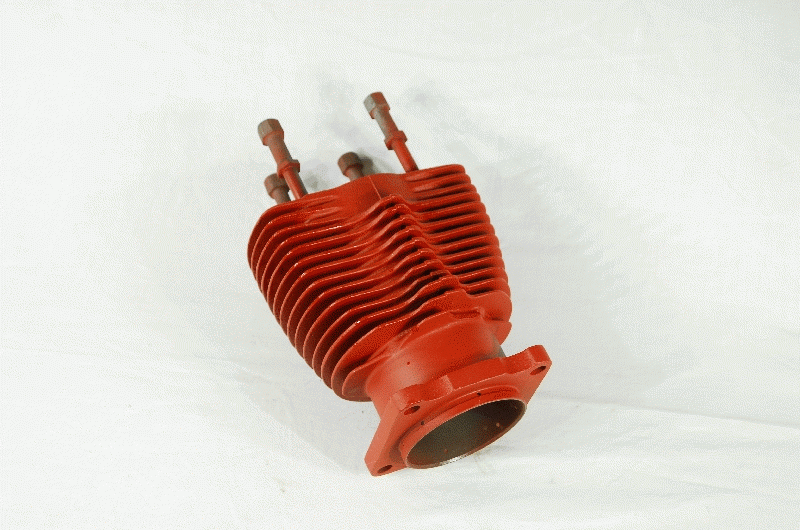

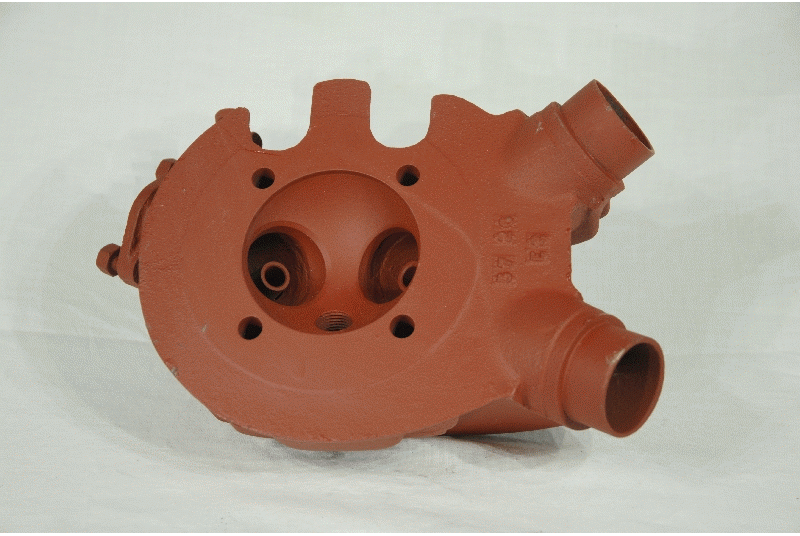

AJS British Cylinder with Head studs Standard Bore is 74mm now on a usable 75mm bore = +40. Bore usable , one top Fin chipped Bead Blasted, Primer Coated fits AJS SV K3, K4, K5. or could be 1929 M3, M4, M5 ( Longstroke )	AJS Cylinder Head with oil feed connecter Genuine NOS 76mm Dia Com Chamber, 18mm Spark Plug Thread, Stamped on Head 37.26.E2 Inlet Bore Size 26mm no chipped fins Bead Blasted + primer coat fits 1937-40 350cc OHV Model 26 Twin Port	AJS New Camshaft Genuine NOS AJS Stamped on Shaft and Cam, Numbers on Cam 51, or 5J, on Shaft R K97 K 3 or 9 ? 5 Stamped on Gear Pinion fits 1930s ? 350cc / 500cc Single ?	Matchless / AJS Pistons C/W Pin Genuine NOS Std + 20 + 40 Thou Oversize ( Standard Bore Size 69.056mm ) most without Rings fits 1933-46 350cc OHV D3, G3, G3L, G4 Matchless Part No. D3-E312
Sold 100,00 €	Sold 200,00 €	Sold 100,00 €	w/o Rings 40,00 € w Rings 60,00 €

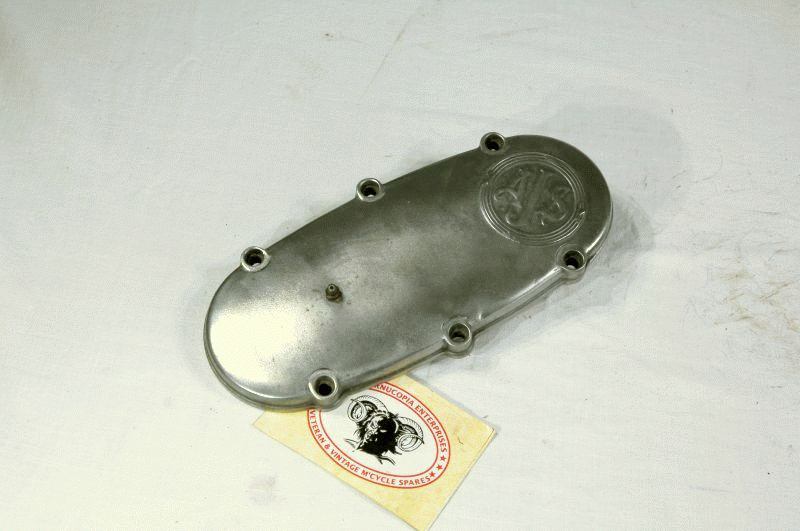

Matchless / AJS Rocker Box Side Cover NOS fits 350cc OHV G3, G3L Models Part No. W41-G3-E85A	Matchless Piston Hepolite Genuine, NOS Hepolite Part No. 3185 3 1/4 inch Bore + 030 Thou Oversize Complete with Rings and Pin fits 1932-35 500cc SV, D5, Light 500cc D80 Sports	AJS Timing Cover Genuine AJS ( used ) fit 1936-37 Model 26 350cc OHV AJS Part No. 35-22-E29	AJS Cylinder Genuine AJS ( used ) rebored to + 030 Thou ( Standard Bore Size 69,056mm ) perfect Condition no chipped Fins Top Fin has the two Cutaways for the Twin Port Exhaust Pipes fits 1936-39 350cc OHV Silver Streak, Model 26, 26SS, 26T AJS Part No 37-16-E1
20,00 € used 12,00 €	80,00 €	Sold 100,00 €	250,00 €
		*	*

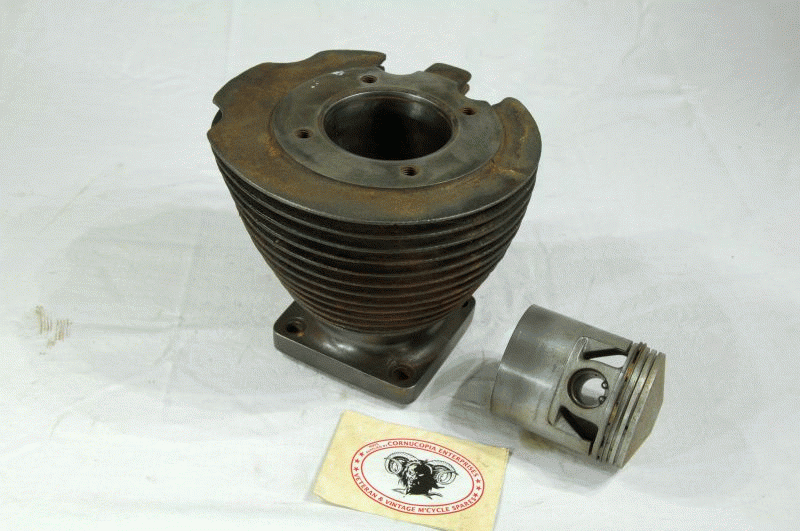

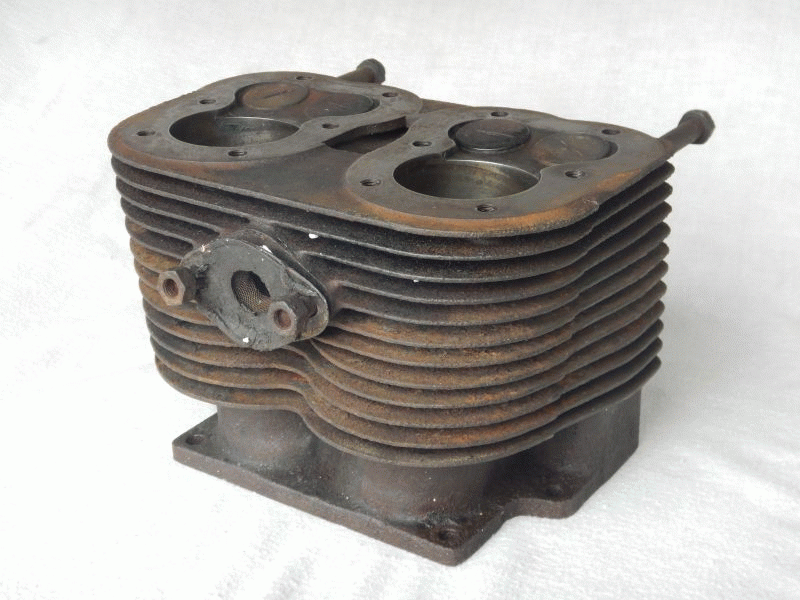

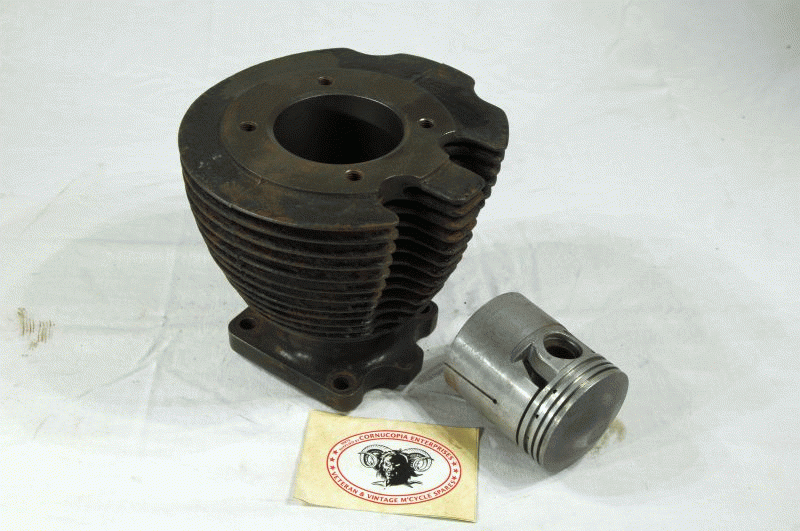

AJS Cylinder Genuine AJS ( used ) includes Genuine AJS NOS Piston rebored to + 040 Thou ( Standard Bore Size 69,056mm ) perfect Condition no chipped Fins Top Fin has the two Cutaways for the Twin Port Exhaust Pipes fits 1936-39 350cc OHV Silver Streak, Model 26,26SS, 26T AJS Part No. 37-16-E1	AJS Cylinder Genuine AJS ( used ) includes Genuine AJS NOS Piston ( less P.Rings & Pin Circlips ) rebored to + 020 Thou, ( Standard Bore Size 69,056mm ) perfect Condition no chipped Fins Top Fin has the two Cutaways for the Twin Port Exhaust Pipes fits 1936-39 350cc OHV Silver Streak, Model 26, 26SS, 26T AJS Part No. 37-16-E1	Matchless Silver Arrow Cylinder Genuine Matchless good Condition, with Valves and Springs for Restoration undamaged Fins or Cylinder Bore ( Standard Bore size 54mm ) Bore Size 54,5mm = 0.20 Thou Bottom Section of bore has some storage Corrosion very rare Cylinder fits 1929 Silver Arrow 18° Degee SV 394cc V-Twin produced in 1929-33 ( only 50 made in first Year ) only total 2.000 Examples produced	Matchless Silver Arrow Cylinder Head Genuine Matchless good Condition for Restoration undamaged Fins Cylinder Surface Skimmed very rare Cylinderhead fits 1929 Silver Arrow 18° Degee SV 394cc V-Twin produced in 1929-33 ( only 50 made in first Year ) only total 2.000 Examples produced
350,00 €	370,00 €	450,00 € ono	300,00 € ono
		Genuine Instruction and Spart Part List available
*

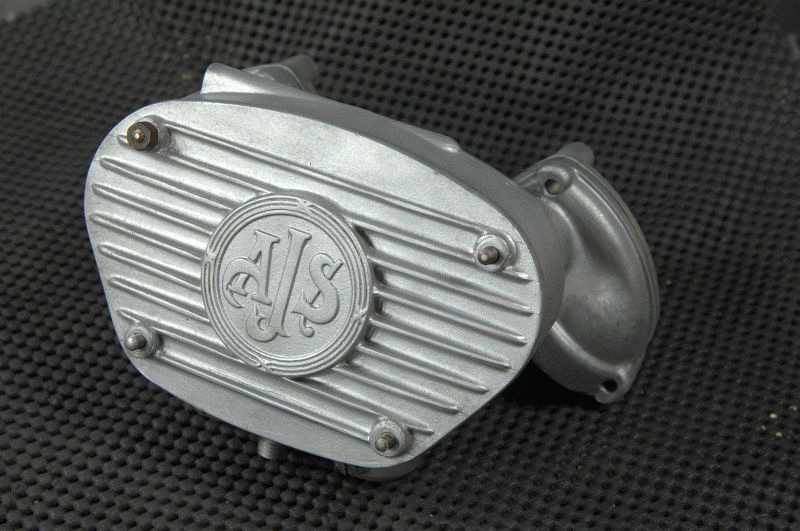

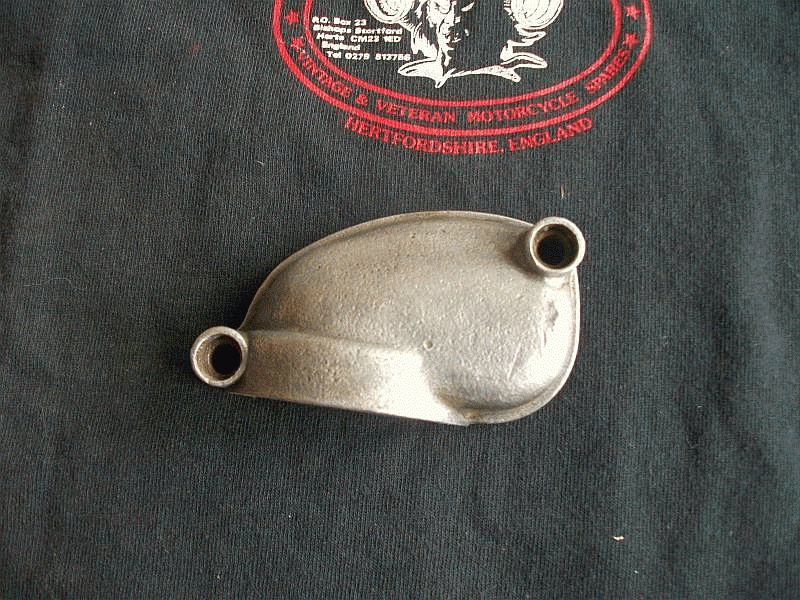

AJS Rocker Box Genuine ( used ) Threads good Rocker Arm can move freely, Serface in usable condition for Restoration fits 1937-38 250 & 350 Model 12, 22, 22T, 16, 26, 26T AJS Part No. 37/12/E61 Rocker Box AJS Part No. 37/12/E62 Box Cover AJS Part No. 37/12/E162/I Valve Cap AJS Part No. 37/12/E162/E Valve Cap	AJS Valve Spring Right Hand Cover Genuine AJS ( used ) fits 1937-38 250cc, 350cc Models 12, 22T, 16, 26, 26T AJS Part No. 37/12/E162/E
Sold 420,00 €	Sold 70,00 €
Sundries / Verschiedenes Back   Menue

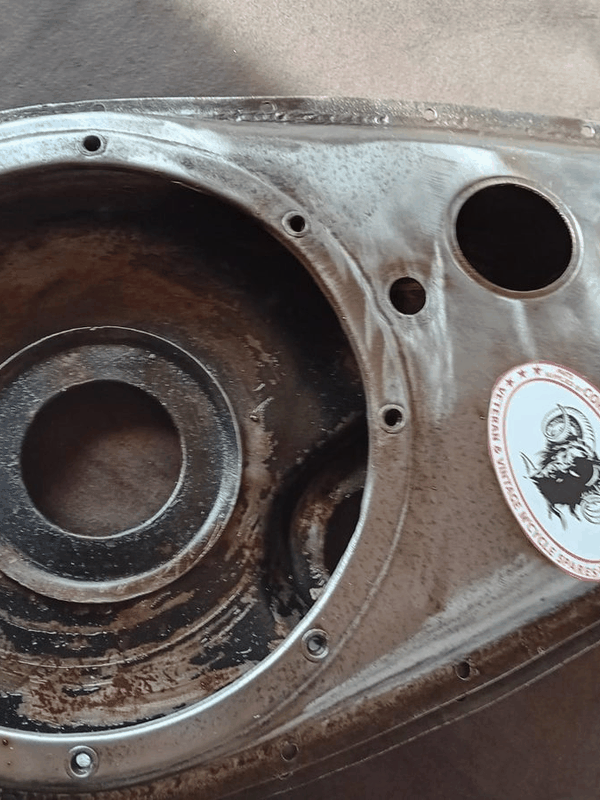

Burman 3 Speed Gearbox with Reverse Gear, Duplex Drive Sprocket, Clutch, Pair Primary Chaincases ( outer Gearbox Cover missing ) Bead Blasted, Primer Coat Type 1 BAR. Number stamped on Box 508 fits 1932-35 STEVENS VAN GearBox + Parts, as above build by the Stevens Brothers ( Wolverhampton ) Ltd Price was 83.00 Pounds Stevens Vans also built in London by Bowden Engineers Ltd Approx 500 built, very few still exist ( but we did notice some Wheels for sale on EBay in Australia last year ) a nice example can be seen, at the Black Country Living Museum Dudley, West Midlands, England Interesting Infors on WWW.historywebsite.co.uk/ museum/transport/motorcycles/reatreatSt.htm.	AJS Replica H.Lamp Bracket Set ( Unpainted ) fits 1930-31 AJS Models, fitted with 8 Inch Lucas Head Lamp and 7 Inch Lucas H52 Head Lamp	AJS ( Stevens ) Engine and Gearbox Brass Lables Replica fits 1920s AJS Models 1920s	Matchless / AJS Steering Damper Knob + Rod + End Cap Genuine AJS / Matchless NOS Rod Length 247mm, Dia 5/16 with End Cap for Girder Fork Models ( Type that had AJS Chrome & Blue Badge was fitted in Centre of Knob ? )
Sold 500,00 €	3 Parts 72,00 €	each 7,00 €	100,00 €

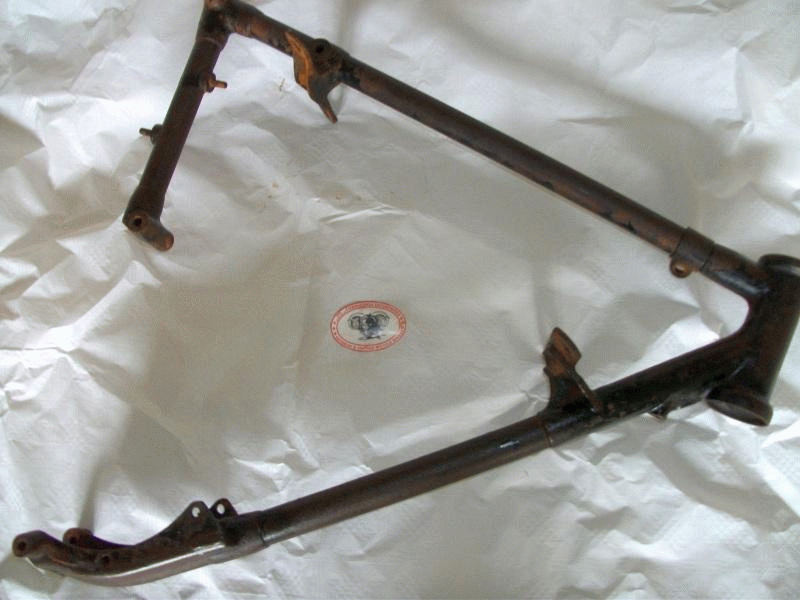

AJS Wheel Rims Pair Front & Rear Genuine JONES ( used ) for Restoration stamped WM2-19 F.1 & WM2-19 H.3 MADE IN ENGLAND Rims in fair rechromable Condition removed from the very same AJS 1935 35/8 500cc OHV That can be seen on our Webb Site Customers Gallery	AJS Front Frame Section AJS Genuine ( used ) good Condition, some Surface Rust ( needs Bead Blasting ? ) for Restoration fits 1936 AJS 350cc OHV Model 16 AJS Part No. 20775	Replica AJS 1937 9.9 HP V.Twin Silencer (unchromed) Bore Size for Ex pipe 44 mm. Fits model 37/2 + 37 / 2A. (Not made in India)	AJS Rocker Box Inc Cover + Rockers Etc (CASE DAMAGED) Fits 1937-38 250cc, 350cc. Model 12, 22, 22T, 16, 26, 26T. Bead Blasted, Cover + Shafts. Rockers in good condition
Pair 90,00 €	Sold 300,00 €	350,00 €	200,00 €

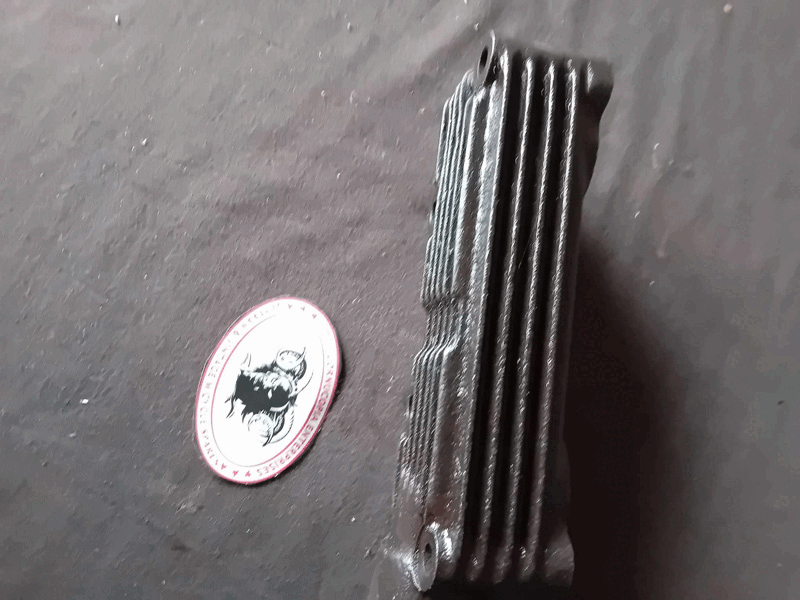

AJS Fishtail Silencer Replica (Unchromed) 1929-35 Bore Size 45mm or 51mm (For AJS Big Port Models) Not made in India !	AJS PRE WAR GIRDER FORK DAMPER DISCS PAIR Replica DIA 51mm, Bore 10mm, 4.18mm Thick (Sand off gloss to obtain grip)	Matchless 1933 Silver Arrow Engine Exhaust Manifold (Used) Perfect condition, no chipped fins For Restoration	AJS (Genuine) used TIMING COVER (No script) Pt Nr 38/22/E29 BEAD BLASTED POLISHED Fits 1937-40 350cc OHV TWIN PORT MODELS, + some later COMPETITION MODELS (more than one in stock) For RESTORATION
Each 200,00 €	12.00 €	200.00 €	70.00 €
Electric / Elektrik Top   Menue
BSA Petrol Tank Panel Inspection Switch Genuine Lucas ( Used ) fits 1934-40 all Models with Panel ( will also fit Triumph and Matchless ) BSA Part No. 24-5305 ( DC44 )	BSA Petrol Tank Panel Inspection Switch New Replica fits 1934-40 all Models with Panel ( will also fit Triumph and Matchless ) BSA Part No. 24-5305 ( DC44 )	BSA Petrol Tank Panel Inspection Switch New Replica fits 1934-40 all Models with Panel ( will also fit Triumph and Matchless ) BSA Part No. 24-5305 ( DC44 )
Sold 150,00 €	Sold 190,00 €	Sold 190,00 €

Customer AJS / Matchless Pre-War Singles Bikes Top   Menue
Andrew Jeffrey Vic Australia 1924 AJS B3 Bigport, with seperate oil and Petrol Tank. Found in Newport Victoria Australia 2004. Operating as a stationary engine. Refurbished to Andrews fussy Standard ( and why not !) Some Parts supplied by Cornucopia Enterprises Another find from Andrew Jeffrey 1935 AJS Model 18 500cc OHV Single Port Parts collected over the last 20 years to make it complete.
	1935 Model 18 Single port OHV            1931 S8 500cc OHV Twinport
AJS 1929 Model M5 350cc SV not many of these Models come up for sale, ( from the Andy Tiernan Collection UK)
AJS 1935 500cc OHV Model 8 was owned by Hans Theo Malchus Part Owner of " DIE DREI - Stellmacherei. Tischlerei, Modellbau - " So If your Wooden Spoked Wheel has Wood Worm or Worse. Need a complete Wooden Bodywork, this is the Firm to Visit ! Some of Theos Wood Machinery dates back to 1905 and still in use! STEINRIEDENDAMM 15 38108 BRAUNSCHWEIG, GERMANY TEL +49 531-351996 WWW.tischlereidiedrei.de Email info@tischlereidiedrei.de	( Theo just sold his Norton Commando to Bernd Grosse Cornucopias Webb Guru )		Diese AJS 1935 500cc OHV Model 8 war im Besitz von Hans Theo Malchus Teilhaber an der Falls ihr defekte Holzspeichenräder mit Holzwürmern habt, neue Holzspeichenräder oder eine komplette Holzkarosserie braucht, dann ist dies die Firma, die du besuchen solltest! Theos Maschinenpark umfaßt Neue und alte antike Maschinen. Die Älteste stammt aus dem Jahr 1905 und ist immer noch in Gebrauch!
